If the illumination of the heater unit has ceased to work on the Jeep Grand Cheroki WK, then the lights need to be replaced. To do this:
- Buy 5 light bulbs 12 V for lighting.

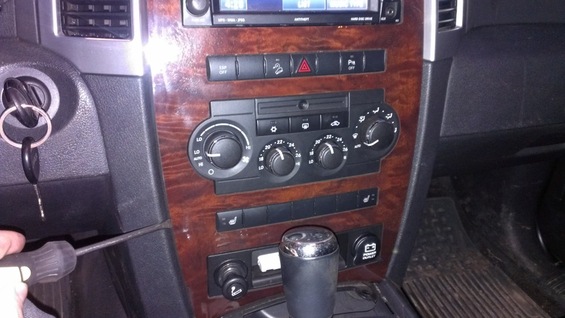

- Pull the chrome bar near the checkpoint.
- We're taking off the central panel. To do this, pull on the bottom edge of the panel and pull it on you. The screwdriver would be better off at the top of the magnet and on the top of the magnet.

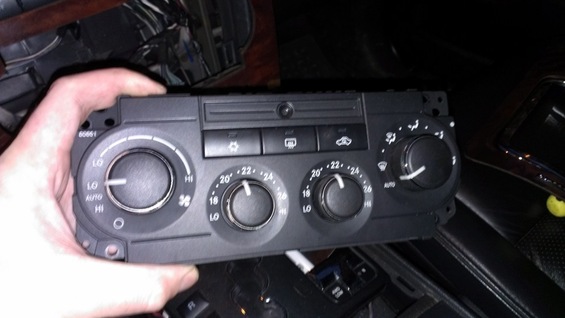

- Disconnect the connectors from the climate unit and unplug the connectors by using the end head on the 4.
- Unlock the screwdriver.

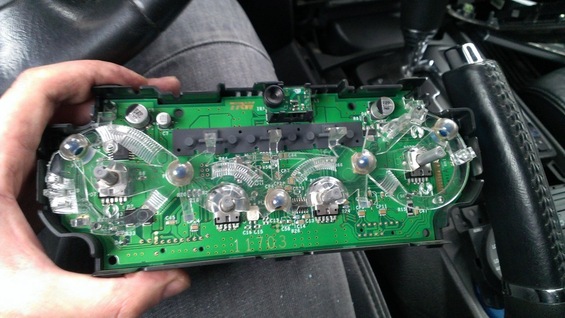

- We find five light bulbs with blue caps.

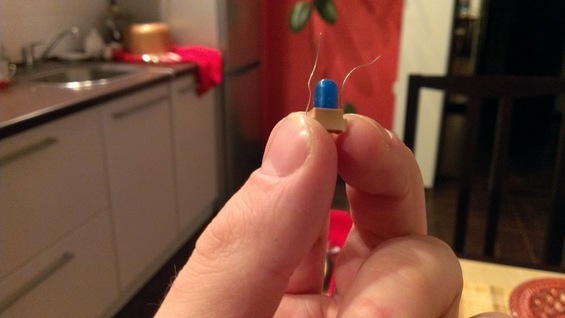

- Pour off the lamp with the base and remove the cap.
- Get new and put on the caps back.
- We're gonna get a unit and put it in place.
