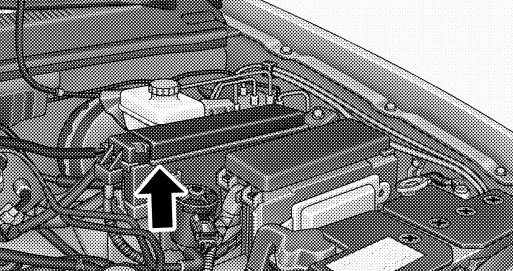

In the engine compartment the Jeep Grand Cherokee WK has the following fuses:
- 1 is the climate control fan (40A).
- 2-power outlets (30A).
- 3 is the rear windscreen wiper (30A).
- 4-Pump ABS (30A).
- 5-heater 1 (50A).
- 6-relay automatic stop (50A)
- 7-air conditioning system at the rear of the car (30A).
- 8 seats (40A).
- 9-door rear door (40A).
- 10 starter (40A).
- 11-cigarette lighter (30A).
- 12-rear glass heating (40A).
- 13-side fuse box (40A).
- 14-Heater 2 (50A).
- 15-Heater 3 (50A).
- 16-Ignition coil (25A).
- 17 for the backup.
- 18-transmission unit (20A).
- 19-ignition lock (20A).
- 20-Engine control unit (20A).
- 21-ABS valves (30A).
- 22-Trailer equipment (20A).
- 23-Transmission Control Unit (20A).
- 24-fuel pump (20A).
- 25-Transmission Control Unit (20A).
- 26-Engine control unit (15A).
- 27 stop lamps (15A).
- 28 injectors (25A).
