The main purpose of the engine cushion (s) is to extinguate the vibrations emanating from the engine during its operation. The car pillows make much less noise and vibration, and the engine is in a relatively static position. The first signs on which it is possible to learn about the failure of the VAZ-engine cushion (s) is a higher level of noise, a knock at the bottom of the engine, or strong vibration. If any of these signs of an engine-pillar are available, the VAZ engine should be inspected. If the motor-cushion malfunction is detected, it will have to be changed. It is not necessary to wait for the replacement of the engine of the VAZ because the engine will be heavily loaded due to vibration, and in the future you risk having more serious problems with the engine (which means that the repairs will have to be spent much more). How to correctly replace the engine pillows (pillars) on the VAZ
How to correctly replace the engine pillows (pillars) on the VAZ
All cars of the classic VAZ family (2101, 2102, 2103, 2104, 2105, 2106, 2107) are changing the same. The procedure for replacing the engine-based engine on the classic VAZ is as follows:
1. Before replacing the engine pillows with an engine, the vehicle must be driven into a pit or onto an overpass.
2. Remove a minus tick from the battery.

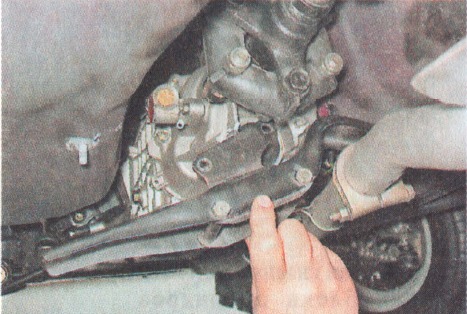

3. Unprotect the engine.

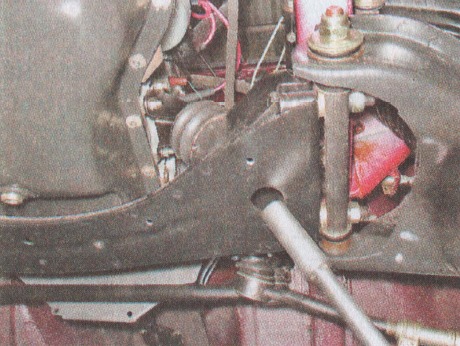

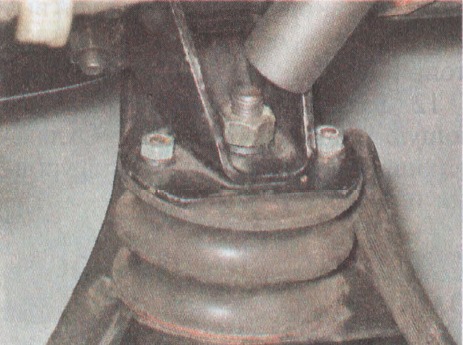

4. Roll forward the upper anchorage of the front cushions to the left of the engine, for this it is necessary to use the end key with a cardan.

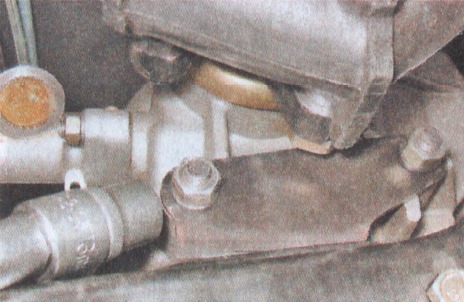

5. In the same vein, unscrew the bottom clip through the hole in the mesh.

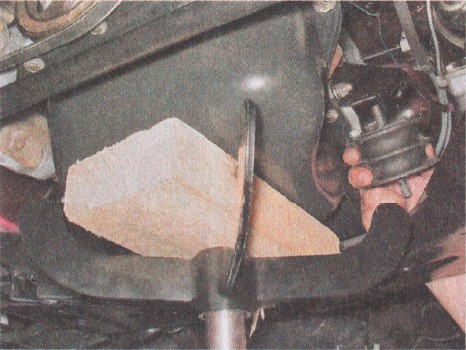

6. In the case of a wooden block of wood, lift the engine off the front of the motor.

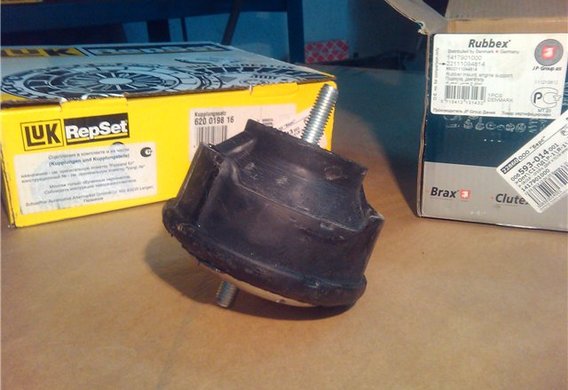

7. Install the new ear of the pillow and reverse the fastenings. To make it easier to wrap the lower nut, you must first place it in the end key, put it on the hairpin, and then start tightening.
8. The following may then be replaced by the replacement of the rear supports of the VAZ engine. First, we need to remove the pin of the checkpoint with the body of the body.
9. Remove the two nut clips that are attached to the back cover of the gearbox with the end key on 13.

10. Completely remove the checkpoint together with the engine cushion.

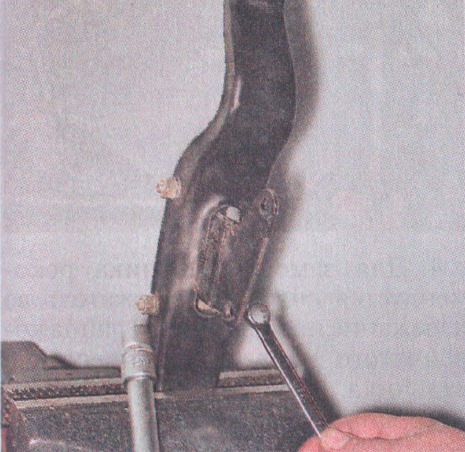

11. Find and spin two nuts that hold a pillow.

12. The rear of the rear of the engine can then be removed. After replacing the cushion with the new assembly, produce the reverse sequence.
