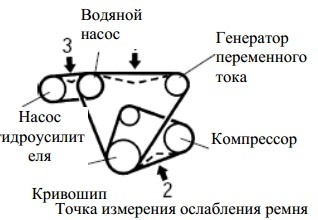

The test of the tensioning of the Gil MK is carried out by pressing them in the middle part (between pulleates and rollers) with an effort of about 10 kg. The verification shall be performed at least after 5 minutes of engine operation. The nominal length of the belt shall be: Generator belt: new-7...9 mm, former in service-11,5 m ... 13, 5 m Resid of the steering wheel: new-5...6 mm, former in operation-6...8 mm.
- Generator belt: new-7...9 mm, former in service-11 .5 m
- Rock amplifier: new-5...6 mm, used in service-6...8 mm.
- Air conditioner: new-6.5 ... 7 mm, used in service-8...9 mm.
After you have installed a new belt, you must first adjust the belt to the new belt, then start the engine and run it for five minutes. It shall then be ascertained that the thrust does not exceed the value for the former in use.
